Handle alternatives for Luxul aluminium framed doors

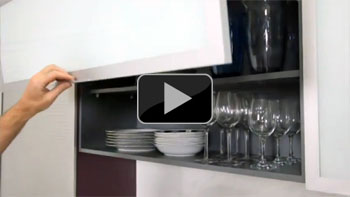

Luxul aluminium framed doors handle alternatives video

Because of the nature of the materials used in the manufacture of Luxul's aluminium framed doors, handle selection and positioning can require extra thought. In this section, we will demonstrate handle alternatives including our integrated handle.

You can also watch the video that will guide you through all the different handle options available for our aluminium framed doors

No handle look

The no handle look achieved here is created by increasing the height of the door by 10 mm or more. The overhang below the carcass acts as a handle.

Loading...
Clear Anodised Aluminium Doors with No Handles

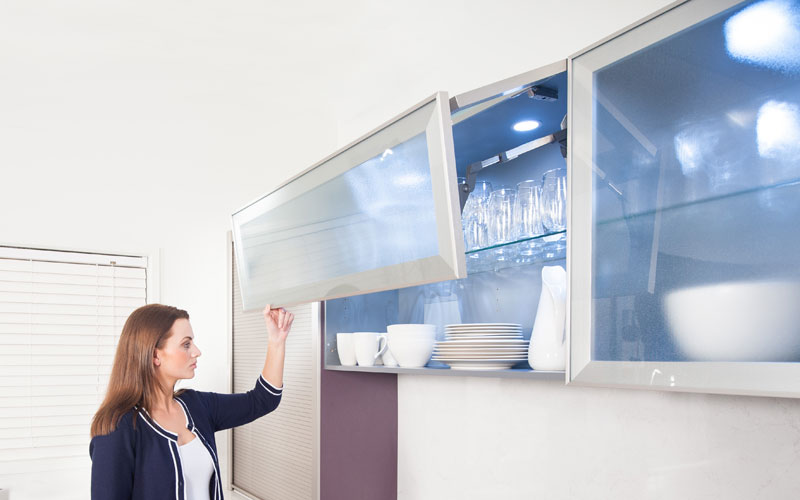

Lift Up Bi-Fold Doors with No Handle

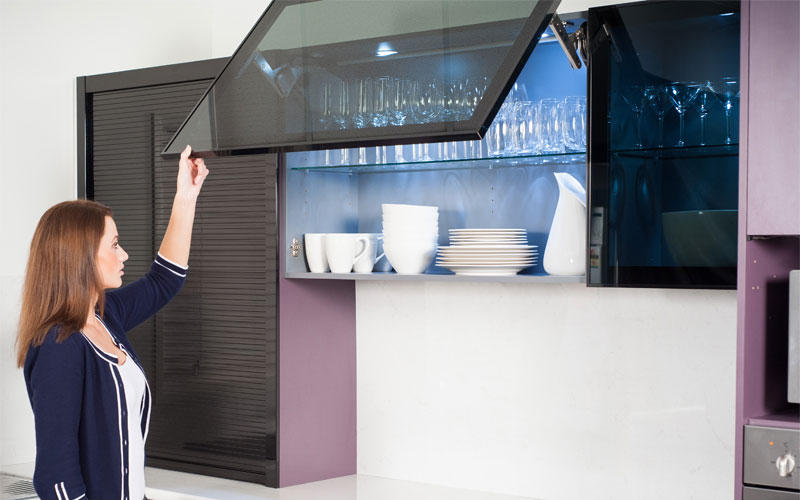

Up & Over Door with No Handle

Drilling of the door profile, or insert, is not required.

Of course, this is not practical for floor unit doors, pantry doors or drawer fronts and can only be used if no other door or panel abuts the handle edge.

All profiles/frames are suitable for this handle method.

Touch to open

Your hardware distributor, can supply “touch to open” fittings specially designed for the opening and closing of cupboard doors, pantry doors and drawer fronts.

Loading...

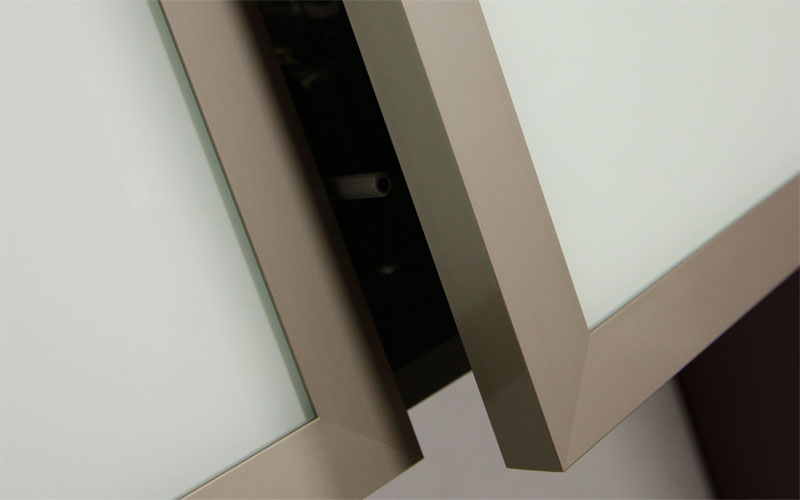

Touch to Open Fitting
Touch to Open Fitting

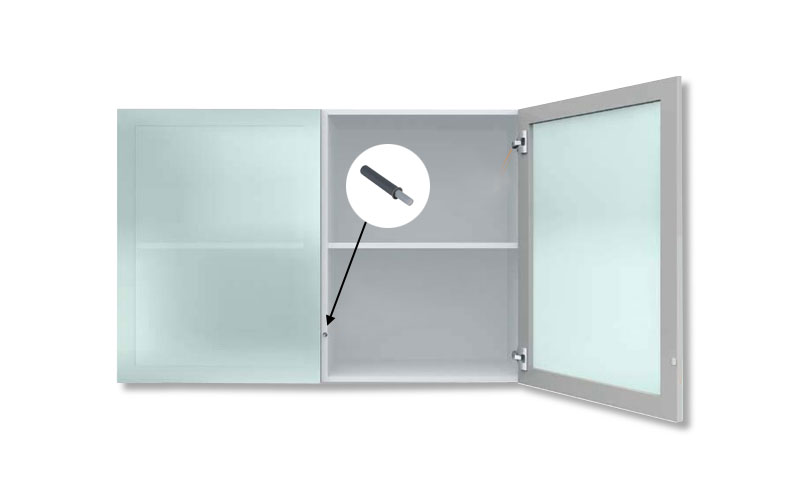

This fitting is inserted into the edge of the carcass.

“Touch to open – push to close”.

Drilling of the door, or insert, is not required.

The “Touch to open” fitting is not suitable for doors using gas struts or microwave doors, up & over doors, sliding doors or bi-fold doors but will operate with the spring flap door.

All profiles/frames are suitable for this handle method.

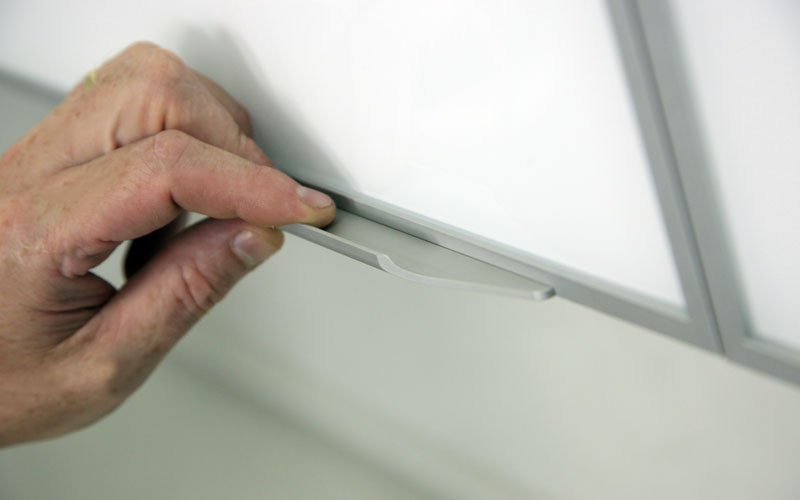

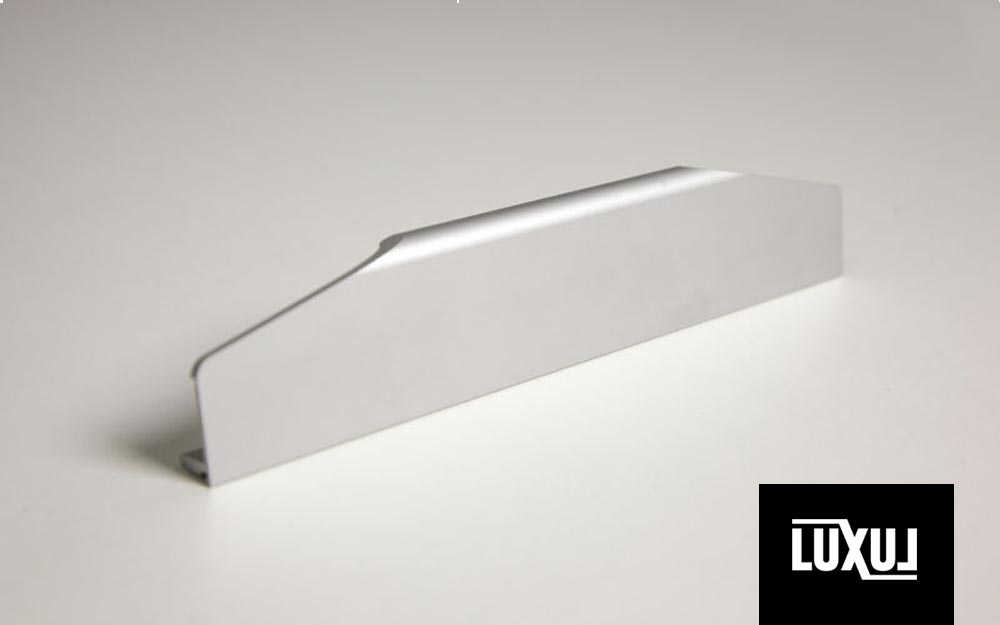

Integrated clear anodised handles

We have engineered and released  clear anodised integrated handles. These integrated handles are designed and manufactured with cutting-edge technology and craftsmanship.

They are safer, smoother and more stylish than anything else on the market. Suitable for most hardware applications, they can be placed anywhere on the door, horizontally or vertically, but not within 60 mm of any corner.

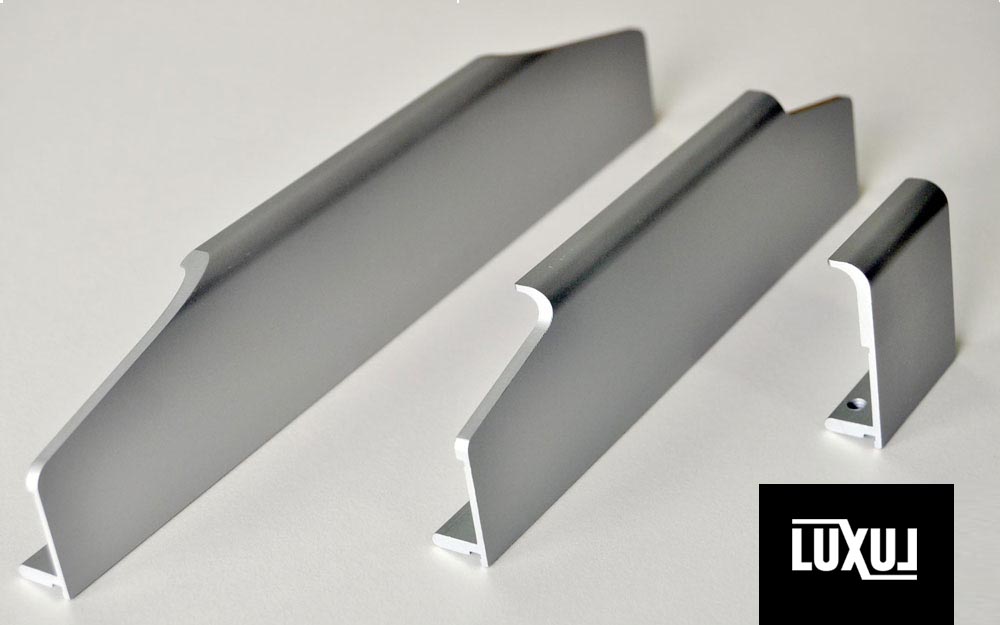

The handles are 35 mm, 147 mm and 197 mm long.

Loading...

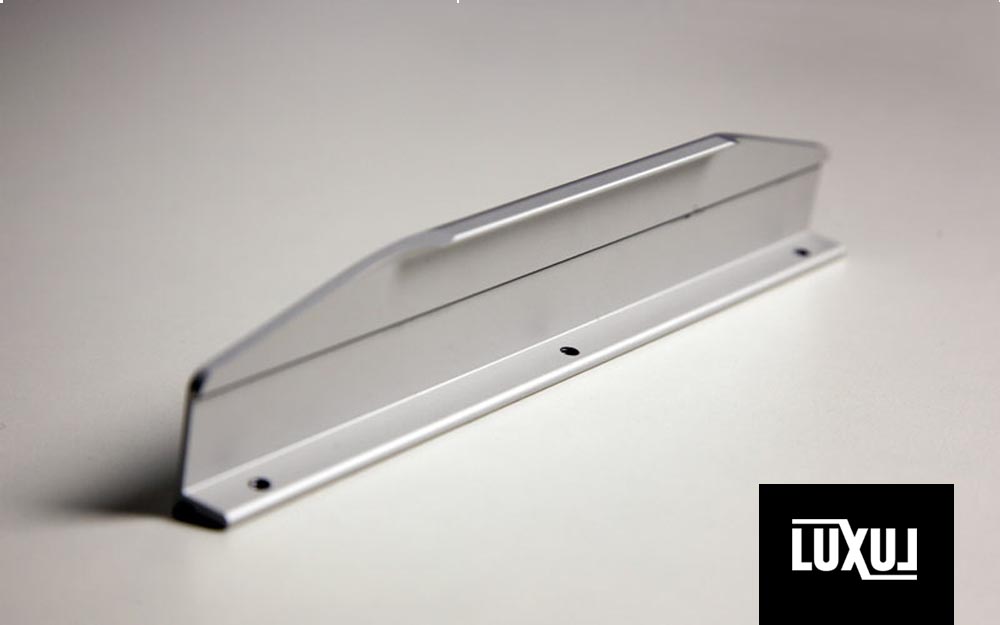

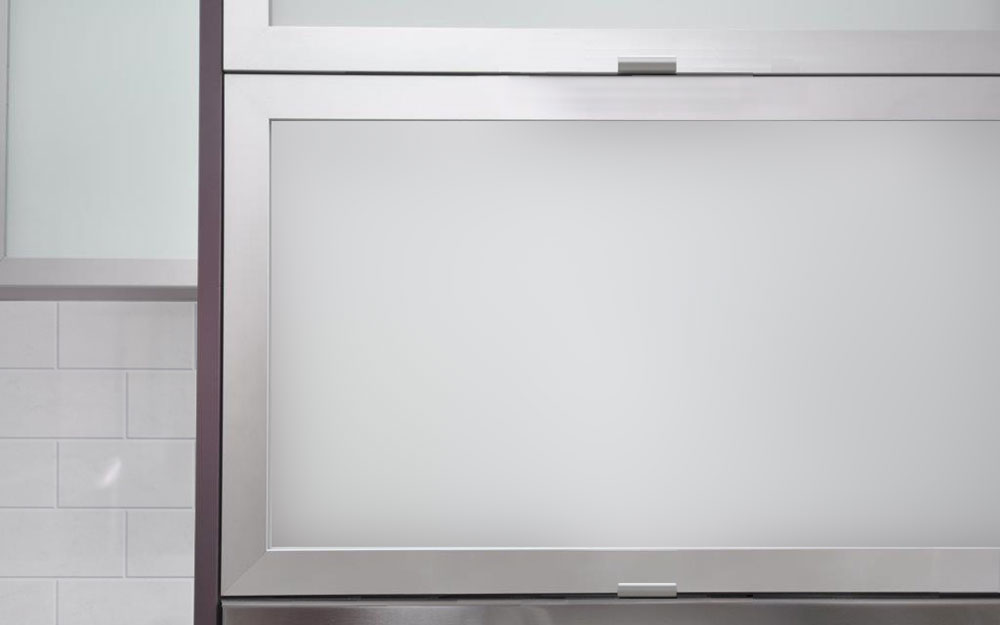

Clear Anodised Aluminium Integrated Handle 35 mm

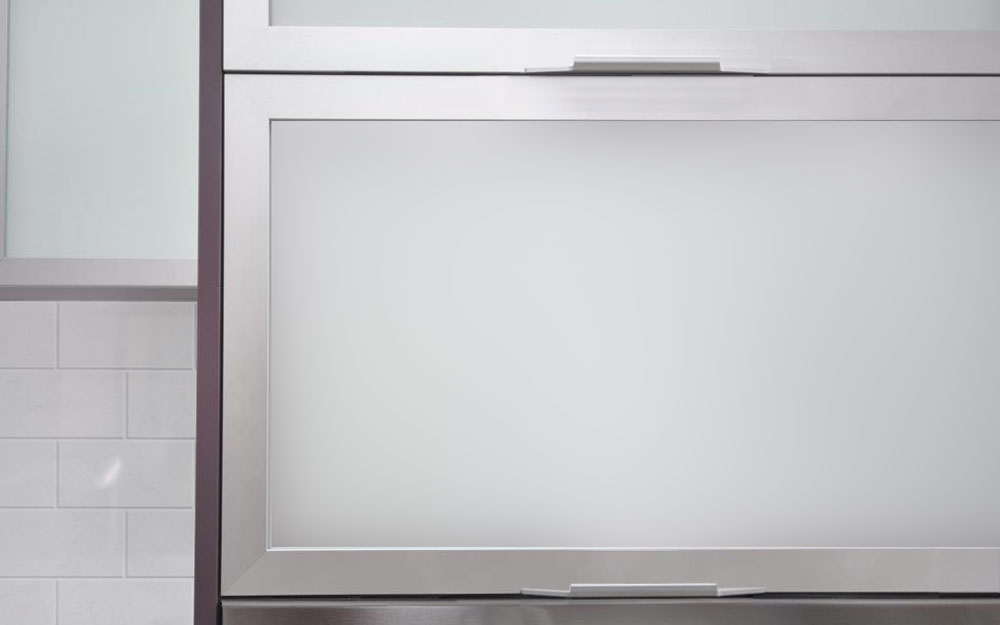

Clear Anodised Aluminium Integrated Handle 147 mm

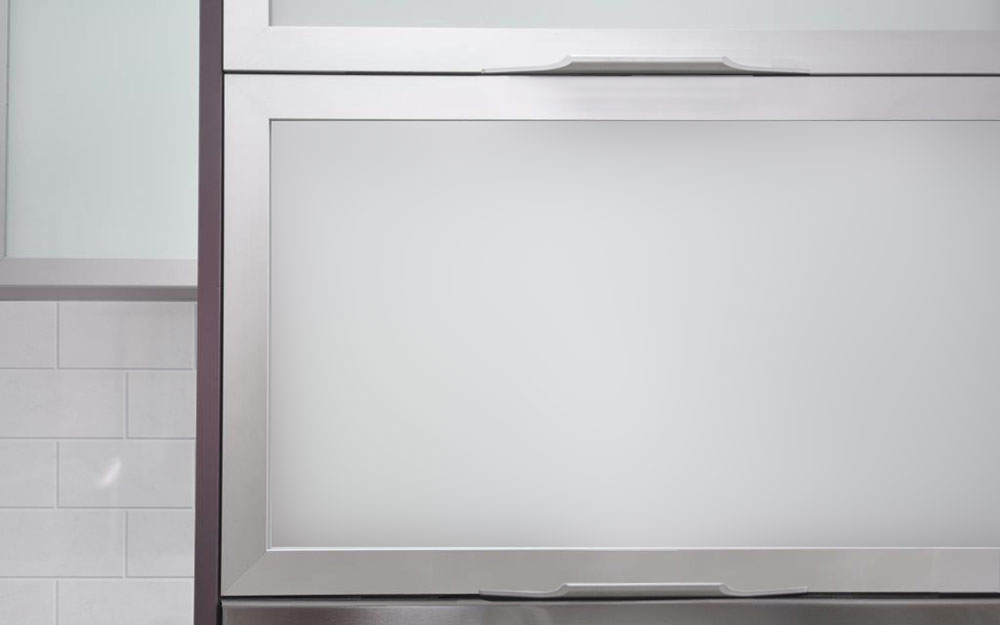

Clear Anodised Aluminium Integrated Handle 197 mm

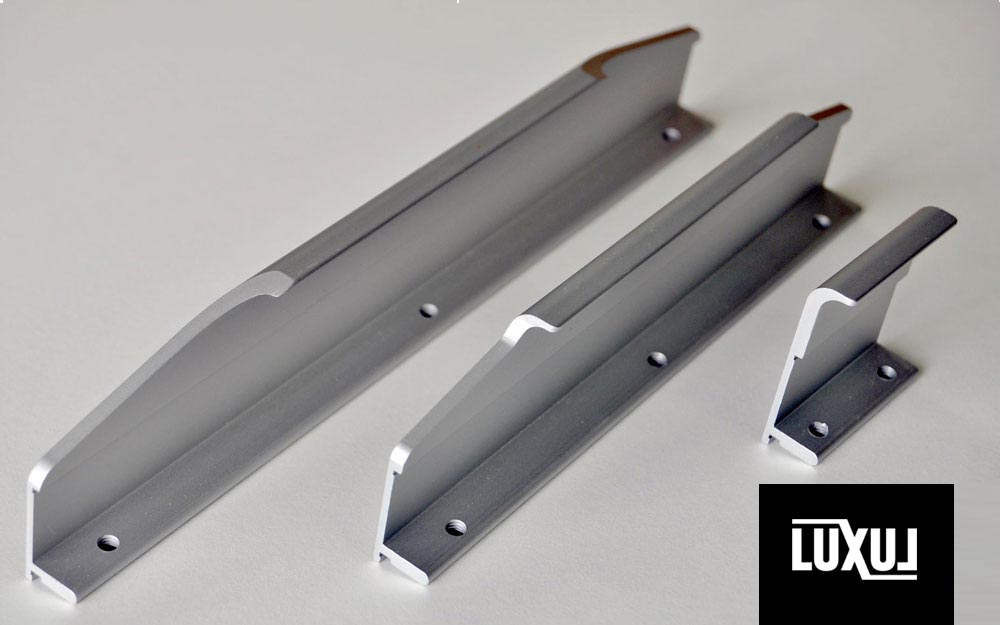

Clear Anodised Aluminium Integrated Handles
Clear Anodised Aluminium Integrated Handles

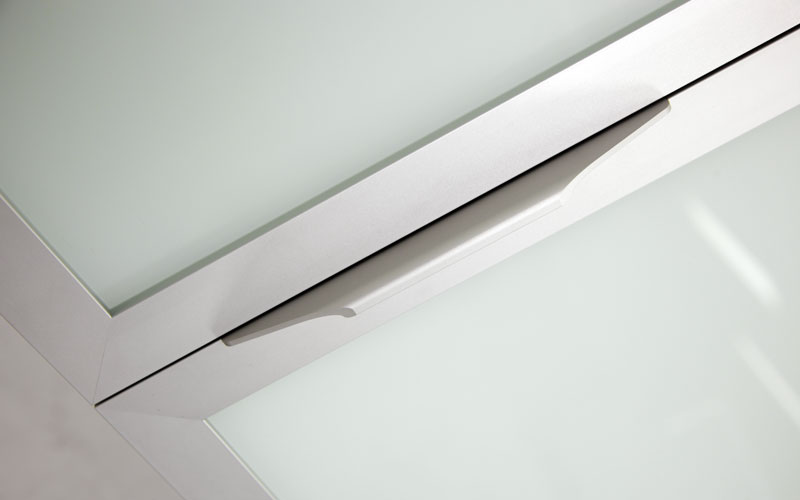

Integrated Clear Anodised Handle
Integrated Clear Anodised Handle

Integrated handles are pre-fitted by Luxul so positional measurements are required when ordering.

You may consider using the clear anodised finish as a contrast to other Luxul profile finishes.

Loading...

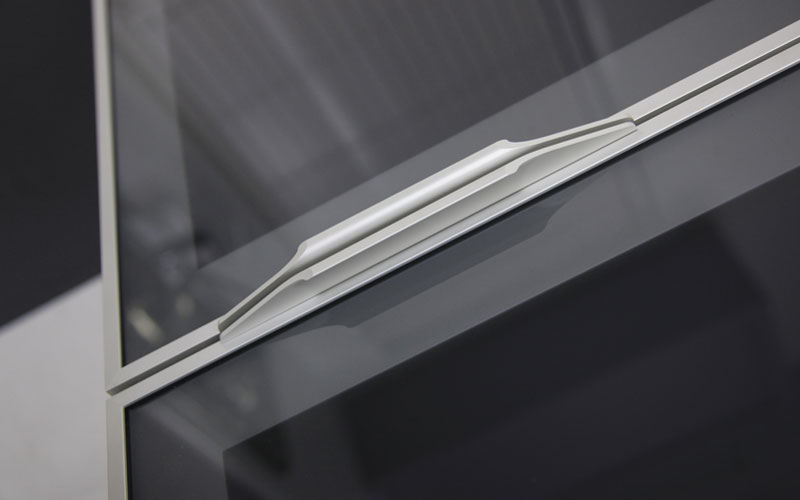

Horizontal Integrated Clear Anodised Handle
Integrated Clear Anodised Handle is Unobtrusive

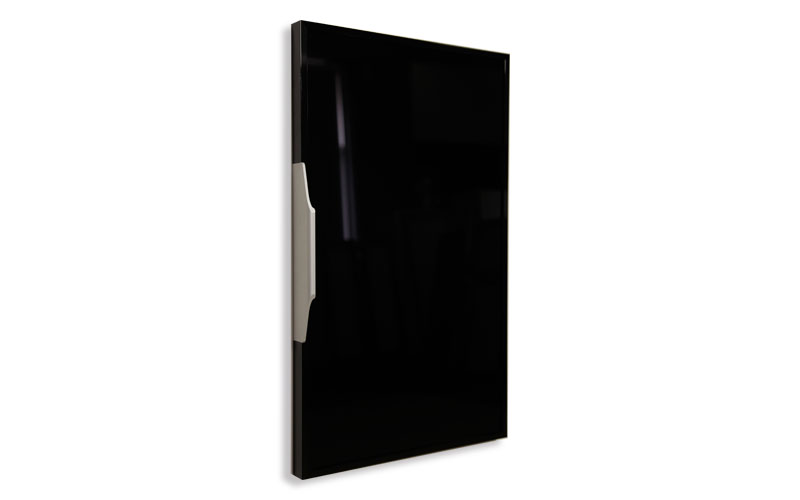

Integrated Clear Anodised Handle contrast  with Black Gloss Aluminium Profile/Frame

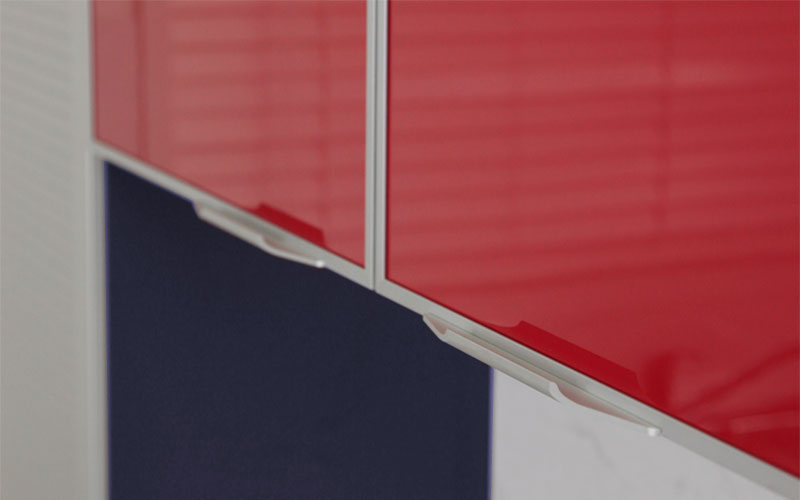

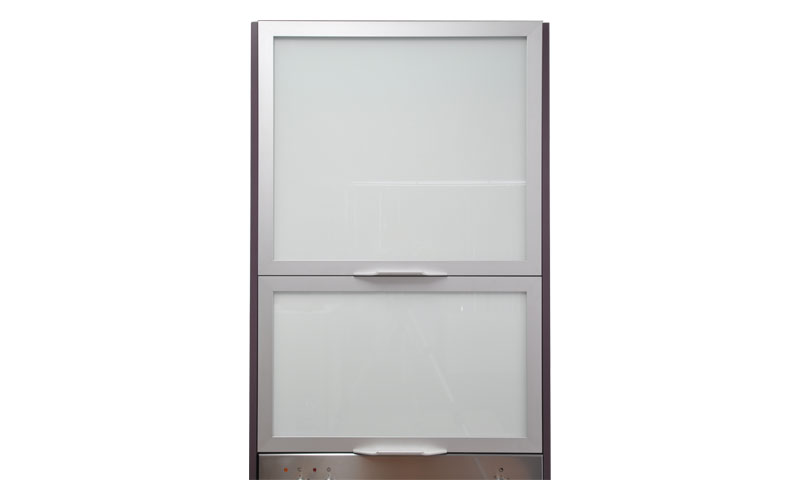

Pair of Integrated Clear Anodised Handles
Integrated Clear Anodised Handle is Unobtrusive
Vertical Integrated Clear Anodised Handle

The integrated handles are suitable for most hardware applications such as  Lift Up Bi-folds, Hinged doors, Spring Flap doors, Up & Over doors, Sliding Bi-Fold doors and Microwave doors. Even Drawer fronts.


Standard handles - fixing

Handles can be fixed to Luxul aluminium framed doors in three different ways: through the profile/frame only, through the insert and profile/frame or through the insert only.

Loading...

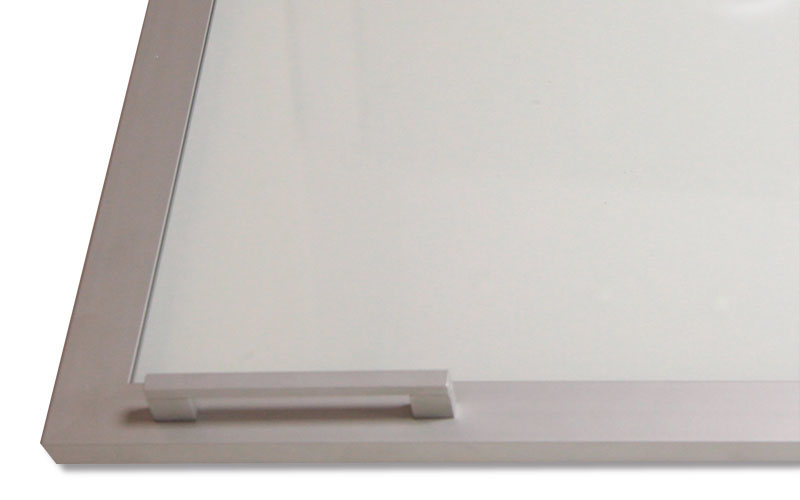

Through the profile/frame only

The 50/31 mm, 50/43 mm and 50/50 mm profiles can be drilled by the installer for fixing of suitable handles. Luxul won't drill profiles/frames.

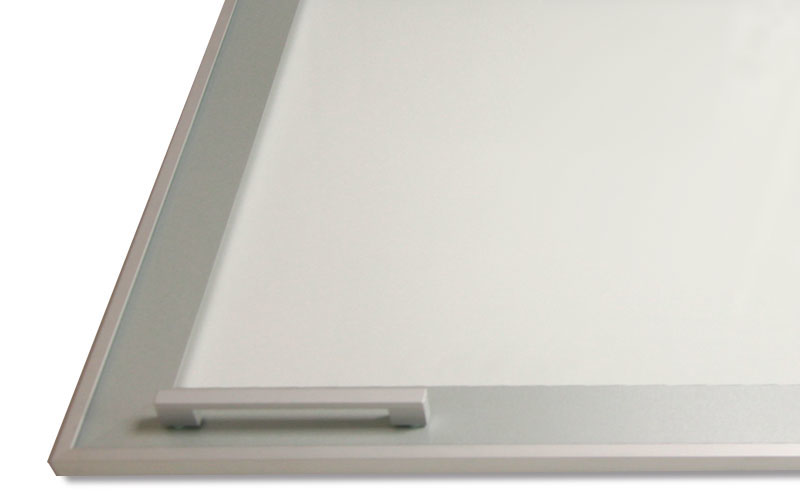

Through the insert and profile/frame

The 50/01 mm, 50/08 mm and 50/19 mm profiles/frames can be drilled through both the frame and insert.Luxul can pre-drill holes in all toughened glass inserts. Inserts other than toughened glass are to be drilled by the installer. All profile/frame holes to be drilled by the installer.

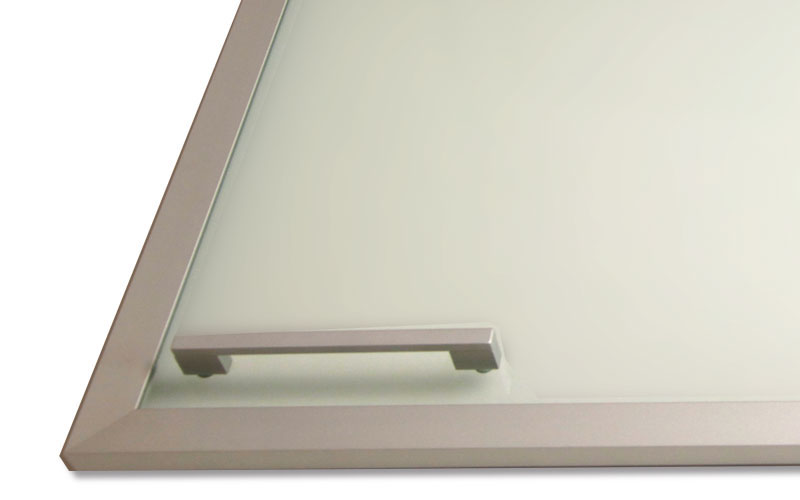

Through the insert only

Luxul can pre-drill holes in all toughened glass inserts. Inserts other than toughened glass are to be drilled by the installer. All profiles are suitable for this method of handle fixing.
